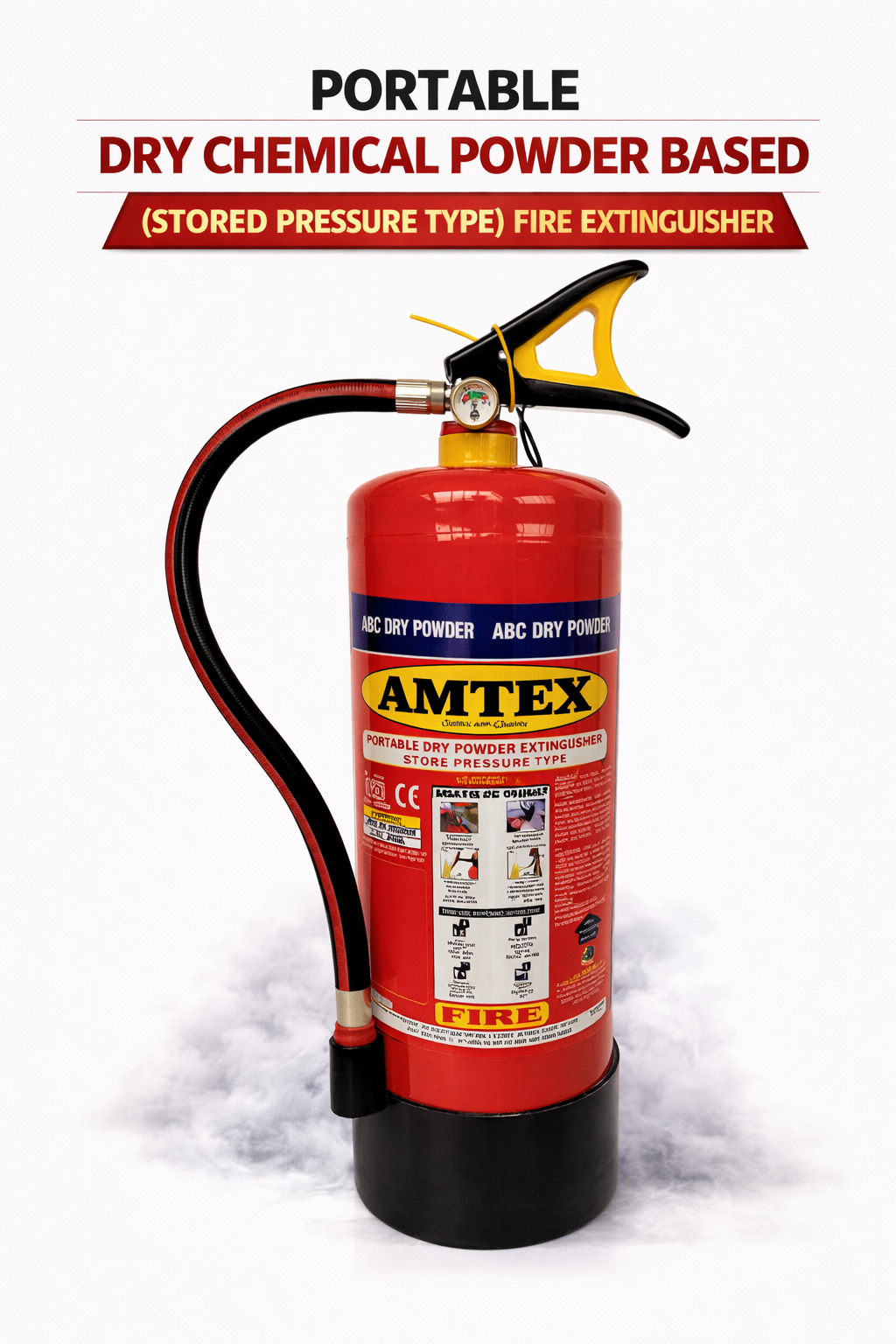

![Portable Dry Chemical Powder Based (Stored Pressure Type) Fire Extinguisher [Stainless Steel]](https://amtexsafety.com/storage/106/69a4aa5fcd88c_ChatGPT-Image-Mar-2,-2026,-02_35_39-AM.png)
ISI / ISO / CE (As Applicable)
Images are indicative. Final finish may vary by batch (as per standards).
MIST EXTINGUISHERS
New
ABC Powder
Stored Pressure (SP)
Portable Dry Chemical Powder Based (Stored Pressure Type) Fire Extinguisher [Stainless Steel]
AMTEX Stored Pressure ABC dry chemical powder extinguisher (Stainless Steel body option) for Class A, B, C and electrically started fires. MAP mono ammonium phosphate powder, UGTS gauge system and controllable discharge.
Key Point
Stainless steel body option (premium finish)
Key Point
UGTS + pressure gauge for readiness
Key Point
Controllable discharge (squeeze grip)
Contact for price
Genuine warranty
Pan-India shipping
Audit assistance
Upgrade options
Product Overview-Product Features
Portable Dry Chemical Powder Based (Stored Pressure Type) Fire Extinguisher [Stainless Steel]
Portable Dry Chemical Powder Based (Stored Pressure Type) Fire Extinguisher - Stainless Steel
An ABC powder fire extinguisher is a multi-purpose extinguisher and is one of the most common extinguishers to keep on hand.
A powder extinguisher sprays a fine chemical powder (commonly Mono Ammonium Phosphate) that blankets the fire and suffocates it.
Powder extinguishers are effective for Class A, B and C fires. Since powder is not an electrical conductor and breaks the chain reaction in liquid or gas fires, it is also suitable for electrically started fires.
- Suitable for A, B, C and electrically started fires
- IS:15683 (2018) with latest amendments
- MAP Mono Ammonium Phosphate dry chemical powder
- BIS Approved and ISI & CE marked
- Hydraulically tested and anti-corrosive treated
- High quality powder coating; durable construction
- Brass chrome plated valve with easy squeeze operation
- UGTS mechanism and controllable discharge
- Easy to maintain, recharge & service
- Rubber braided hose for flexibility and durability
- Conformity standard: IS:15683:2018 (Latest)
Available Sizes: 1Kg, 2Kg, 4Kg, 6Kg, 9Kg
Available Variants: Stainless Steel Polish and Regular Fire Red
Refilling must be done by Manufacturer or Authorised Skilled Agent. Technical specifications are subject to change due to continuous improvement.
Key Highlights
-
Multi-Class Protection
Effective for Class A, B, C and electrically started fires
-
MAP ABC Powder
Mono Ammonium Phosphate powder blankets and suffocates fire
-
UGTS + Gauge
UGTS mechanism and pressure gauge indicate readiness and enable controllable discharge
-
Stainless Steel Variant
Premium stainless steel polish option along with regular fire red
-
Certified & Tested
BIS approved, ISI & CE marked; hydraulically tested and leak tested
Works on
Suitable across multiple fire classes (as per application).
Class-A
Wood, paper, cloth and other solid combustibles
Class-B
Flammable liquids like petrol, paints, solvents
Class-C
Flammable gases
Electrical
Electrically started fires
*Use from a safe distance and follow safety guidance / site policy.
Recommended For
Residential • Commercial • Institutional • Industrial
- Schools
- Offices & Banks
- Hotels
- Restaurants
- Electrical Equipment Rooms
- Server Rooms
- Parking Garages
- Repair Workshops
- Construction Sites
- Propane Filling & Storage
- Welding Areas
- Machine Operations
Available Sizes
1KG, 2KG, 4KG, 6KG, 9KG
Available Variants
Stainless Steel Polish and Regular Fire Red
Technical & Performance Data
Reference configuration data (subject to continuous improvements).
| Parameter | AS/01 & AS/02 | AS/04 | AS/06 | AS/09 |
|---|---|---|---|---|
| CAPACITY | 1KG/2KG | 4KG | 6KG | 9KG |
| EXTINGUISHING AGENT | ABC POWDER | ABC POWDER | ABC POWDER | ABC POWDER |
| PROPELLANT | NITROGEN GAS (As per IS:1747) | NITROGEN GAS (As per IS:1747) | NITROGEN GAS (As per IS:1747) | NITROGEN GAS (As per IS:1747) |
| APPLICABLE ON FIRES | A, B, C, & Electrical Started Fire | A, B, C, & Electrical Started Fire | A, B, C, & Electrical Started Fire | A, B, C, & Electrical Started Fire |
| OPERATING TEMPERATURE | -30 C to +60 C | -30 C to +60 C | -30 C to +60 C | -30 C to +60 C |
| FIRE RATING | MIN 1A& 34B | MIN 3A& 55B | MIN 3A& 89B | MIN 4A& 144B |
| HYDROSTATIC TEST PRESSURE | 35 BAR | 35 BAR | 35 BAR | 35 BAR |
| BURST PRESSURE | MIN 55 BAR | MIN 55 BAR | MIN 55 BAR | MIN 55 BAR |
| WORKING PRESSURE | 15 BAR | 15 BAR | 15 BAR | 15 BAR |
| IMPACT TEST | PASSED | PASSED | PASSED | PASSED |
| PRESSURE CYCLING TEST | PASSED | PASSED | PASSED | PASSED |
| TAPPING TEST | PASSED | PASSED | PASSED | PASSED |
| INTERMITTENT DISCHARGE TEST | PASSED | PASSED | PASSED | PASSED |
| COATING | EPOXY POWDER COATING | EPOXY POWDER COATING | EPOXY POWDER COATING | EPOXY POWDER COATING |
| VALVE / CAP CONSTRUCTION | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING | FORGING AND MACHINING |
| DISCHARGE MECHANISM | SQUEEZE GRIP/THUMB TRIGGERED | SQUEEZE GRIP/THUMB TRIGGERED | SQUEEZE GRIP/THUMB TRIGGERED | SQUEEZE GRIP/THUMB TRIGGERED |
| METHOD OF OPERATION | EASY ACTIVATION | EASY ACTIVATION | EASY ACTIVATION | EASY ACTIVATION |
| BODY THICKNESS | AS PER IS:15683 | AS PER IS:15683 | AS PER IS:15683 | AS PER IS:15683 |
| CAST ANALYSIS OF THE BODY | C: 0.25% max; S: 0.05% max; P: 0.05% max of phosphorus | C: 0.25% max; S: 0.05% max; P: 0.05% max of phosphorus | C: 0.25% max; S: 0.05% max; P: 0.05% max of phosphorus | C: 0.25% max; S: 0.05% max; P: 0.05% max of phosphorus |
| HELIUM LEAK DETECTION TESTING | YES | YES | YES | YES |
| LEAKAGE TEST (Latest) | YES | YES | YES | YES |
| HEIGHT (APPROX.) | Approx. 335mm/365mm | Approx. 440 mm | Approx. 460 mm | Approx. 550 mm |
| GROSS WEIGHT (APPROX.) | Min. 2.100 Kg / Min. 3.200 Kg | Min. 6.200 Kg | Min. 8.400 Kg | Min. 12.300 Kg |
| AVERAGE DISCHARGE TIME(MED) | MIN 9 SEC | MIN 13 SEC | MIN 13 SEC | MIN 13 SEC |
| AVERAGE RANGE OF THROW | 1-2 MTR. | 2-3 MTR. | 2-5 MTR. | 2-6 MTR. |
| AVERAGE % DISCHARGE | MIN 90% | MIN 90% | MIN 90% | MIN 90% |
| MOUNTING BRACKET | YES | YES | YES | YES |
| PRESSURE GAUGE | YES | YES | YES | YES |
| READYNESS OF WORKING | SHOWING | SHOWING | SHOWING | SHOWING |
| HOSE ASSEMBLIES | (ONLY NOZZLE) | YES (MORE THAN 400 MM) | YES (MORE THAN 400 MM) | YES (MORE THAN 400 MM) |
| SAFETY LOCKING DEVICE | YES(20 N TO 100 N) | YES(20 N TO 100 N) | YES(20 N TO 100 N) | YES(20 N TO 100 N) |
| CONFORMING STANDARDS | IS:15683(LATEST) | IS:15683(LATEST) | IS:15683(LATEST) | IS:15683(LATEST) |
| NABL LAB APPROVAL (BIS APPROVED LAB) | YES | YES | YES | YES |
| APPROVALS | BIS,CE,EN & ISO | BIS,CE,EN & ISO | BIS,CE,EN & ISO | BIS,CE,EN & ISO |
Important
It is mandatory for the extinguisher to be refilled by Manufacturer or an Authorised Skilled Agent.
Specifications may change with time due to continuous product improvisation.
Need a quotation or bulk requirement?
Get support for selection, placement, BOQ, and compliance documentation.
